Daikin Sensing Technology
Dual Sensors
Dual Sensors and individual airflow direction control automatically provide optimal control of airflow.
Infrared Presence Sensor

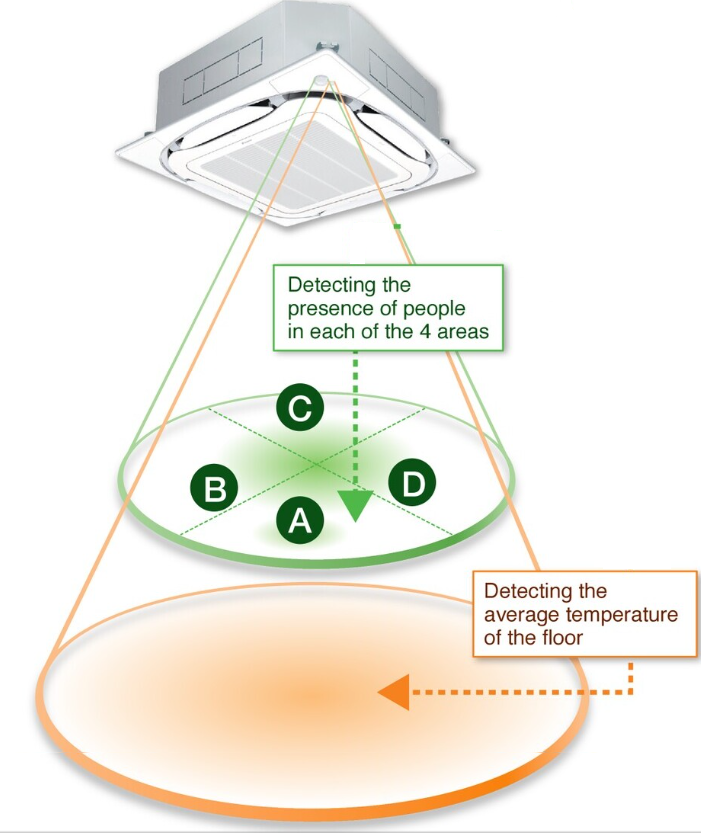

The sensor detects the presence of people in each of 4 areas.
| Ceiling Height | 2.7m | 3.5m | 4.0m |
|---|---|---|---|
| Diameter range (diameter)*3 | Approx. 8.5m | Approx. 11.5m | Approx. 13.5m |
Infrared Floor Sensor
The sensor detects the floor temperature and automatically adjusts operation of the indoor unit to reduce the temperature difference between the ceiling and the floor.
| Ceiling Height | 2.7m | 3.5m | 4.0m |
|---|---|---|---|
| Diameter range (diameter)*4 | Approx. 11m | Approx. 14m | Approx. 16m |
Auto Airflow Functions
Individual Airflow Direction Control
Airflow direction can be individually adjusted for each discharge outlet to deliver optimal air distribution.

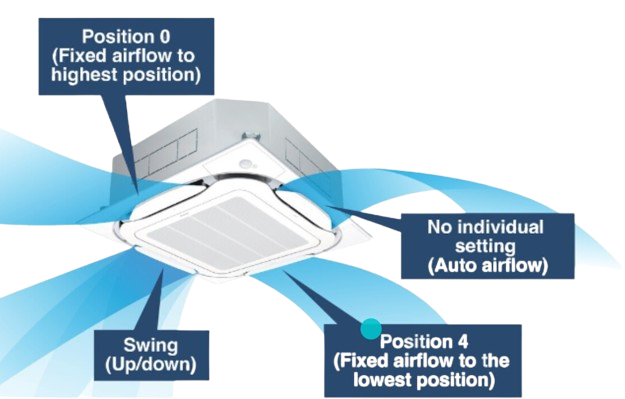

Individual Airflow Settings
- No Individual setting (Auto airflow)
- Position 0 (Highest point)
- Position 1
- Position 2
- Position 3
- Position 4 (Lowest point)
- Swing
When individual airflow is selected, airflow direction can be adjusted to room layout.
Circulation Airflow Evenly Distributes Cool Air

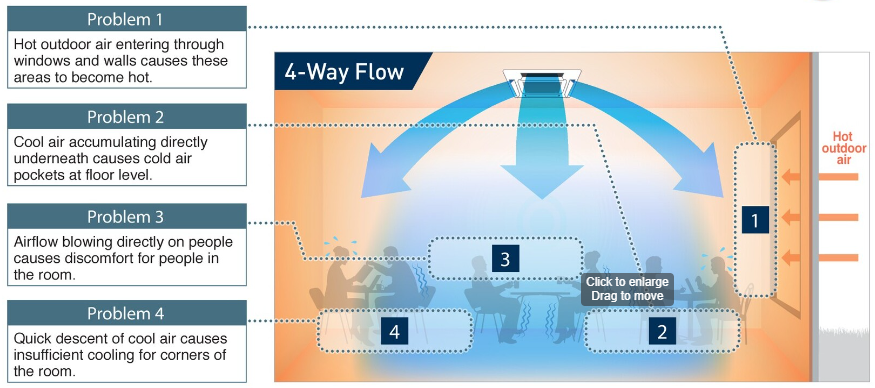

Conventional airflow had areas that were either too cool or not cool enough.

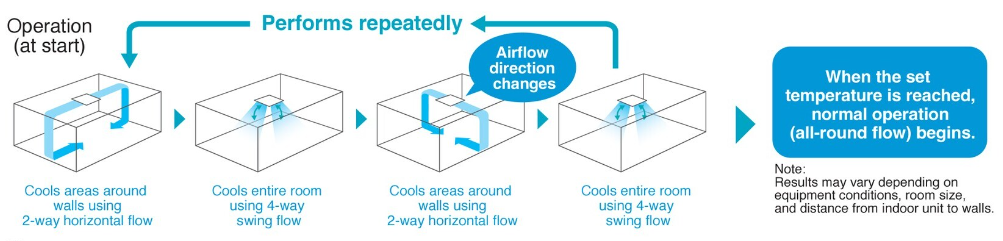

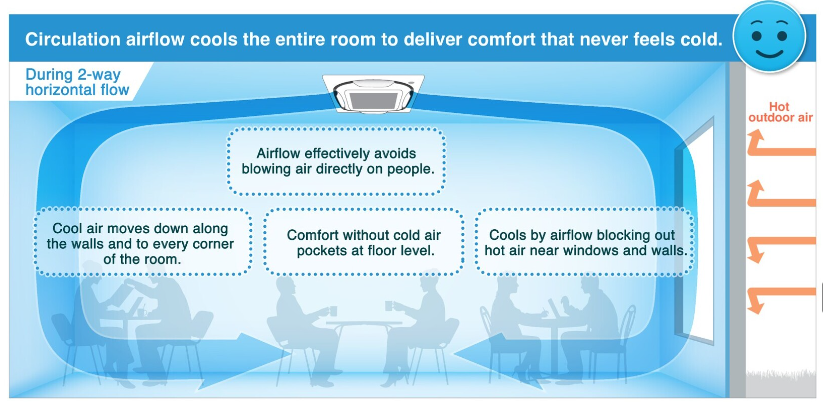

Circulation airflow cools the entire room to deliver comfort that never feels cold.
Configurations of Circulation Airflow (Cooling)
Technology to Improve Energy Efficiency

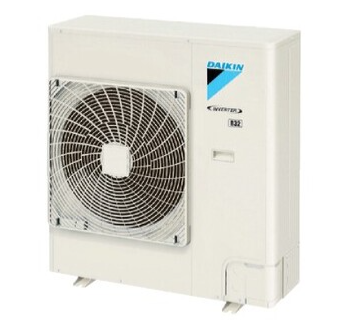

Outdoor Unit

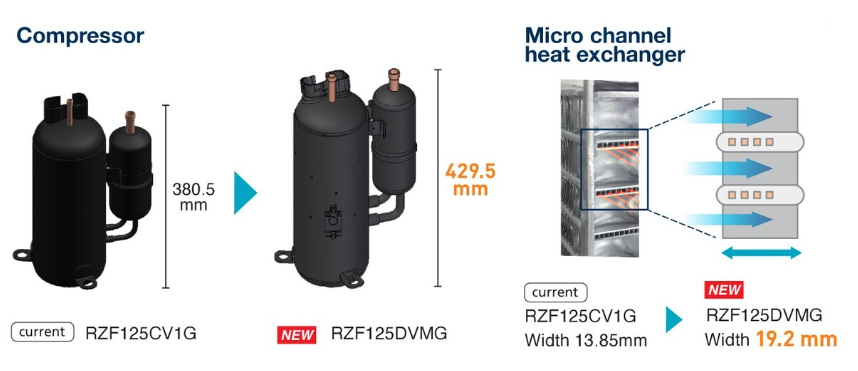

The cassette type 125 class outdoor unit uses a larger and more efficient compressor than the current model.
The micro channel heat exchanger is getting wider and more efficient.
Indoor Unit (Cassette type)

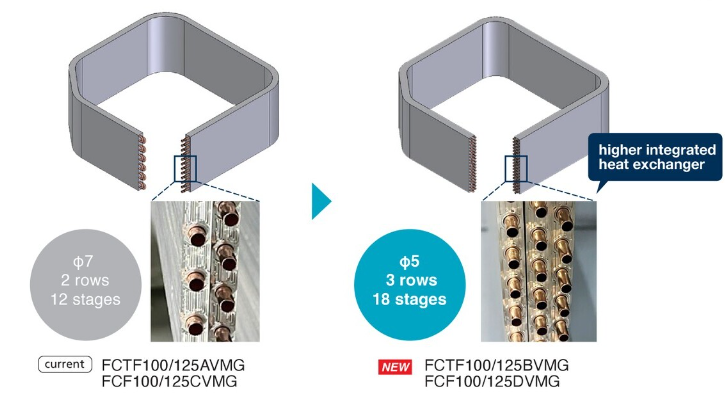

The cassette type 100/125 class uses a higher integrated heat exchanger to improve efficiency.
Durability
Micro Channel Heat Exchanger
Micro channel technology utilises superior heat transfer benefits of aluminum to create a more efficient air conditioner. With a new resistance corrosion aluminum alloy, the Daikin micro channel heat exchanger becomes highly durable. A salt spray test has been conducted to demonstrate the corrosion-resistant capability of our products in corrosive environments for a certain period of time.

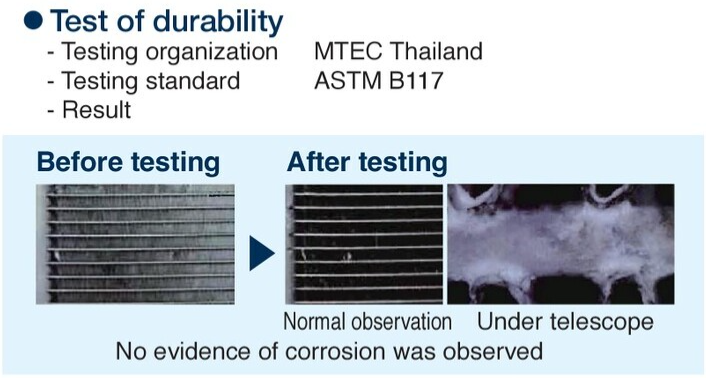

After undergoing an intensive test, the Daikin micro channel heat exchanger is able to maintain its shape without corrosion, which strongly confirms its durability in a highly corrosive environment.
Enhanced Protection Against Dissimilar Metal Corrosion
In many Asian regions, corrosive substances such as iron, chlorine, nitrogen oxides, and sulfur oxides are known to accelerate refrigerant leakage due to dissimilar metal corrosion. To address this, the new RZF-D/DA models in the Premium series apply a zinc spray coating to the multi-hole tubs of MCHX (Micro Channel Heat Exchanger).
This treatment significantly improves resistance to corrosion between dissimilar metals, enhancing durability in environments with high corrosion risk.
The design is based on the proven technology used in existing Premium (RZF) models, ensuring reliable performance even under harsh outdoor conditions.
Enhanced PCB Protection Against Gecko Entering
In many Asian regions, small geckos and foreign objects are major cause of outdoor unit PCB failures. Daikin has reinforced its PCB design with preventive measures to ensure long-lasting performance and reliability.
RZF50-71DVMG, RZF71DAVMG (Small Casing)

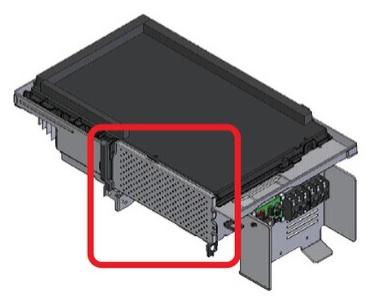

The control box is fully enclosed with metal sheet covers, preventing small animals and debris from entering.
RZF100/125DVMG, RZF100-140DAVMG (Medium to Large Casing)
A resin cover is installed from the side to the back of the PCB. The gap between the PCB and the resin cover is minimized to just 1 mm, effectively deterring geckos without compromising heat dissipation.
Automatic Protection Against Low Voltage
In AM and PM peak electricity consumption periods, supply may fluctuate. Built-in low-voltage protection will automatically cut operations. When normal voltage is restored, operation will resume as before.
Coated Printed Circuit Boards
Coated circuit boards prevent problems by humidity and airborne dust. It also protects against salt contained in sea breezes. Both sides of the PCB in outdoor units are coated.
Reuse of Existing Piping

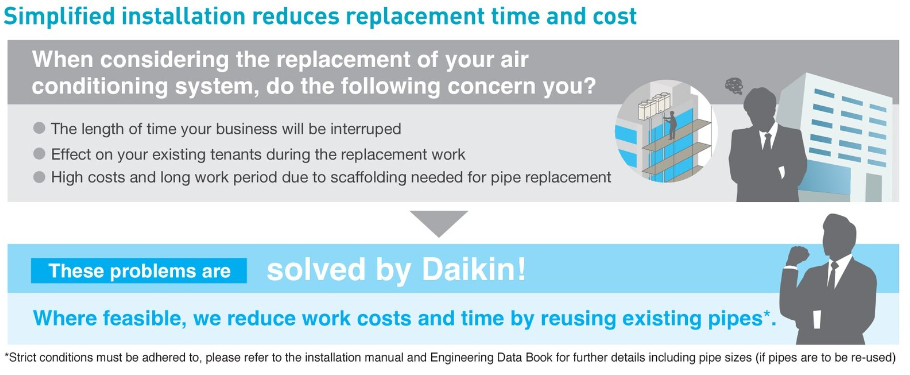

Benefit 1 : Simplified Installation Reduces Replacement Time and Cost

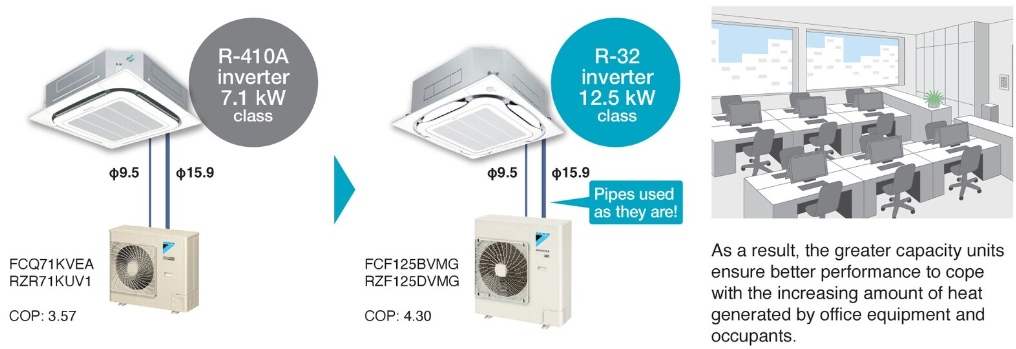

Benefit 2 : You Can Increase Cooling Capacity and Achieve Higher Energy Efficiency
Upgrade to an air conditioner with the latest technology for greater comfort and energy efficiency.
Technology

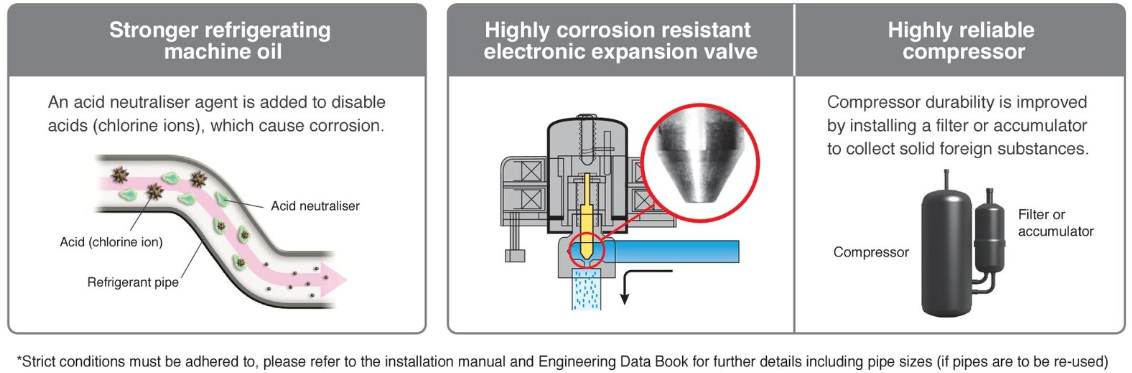

Advanced technology, including the use of corrosion resistant electronic expansion valves, acid neutralisers and improved compressor reliability, enables the re-use of existing piping* without the need of pipe flushing for a simplified replacement process.
Specifications

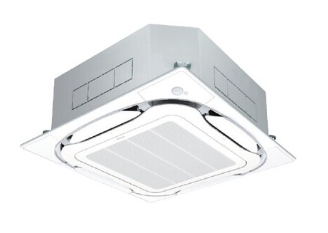

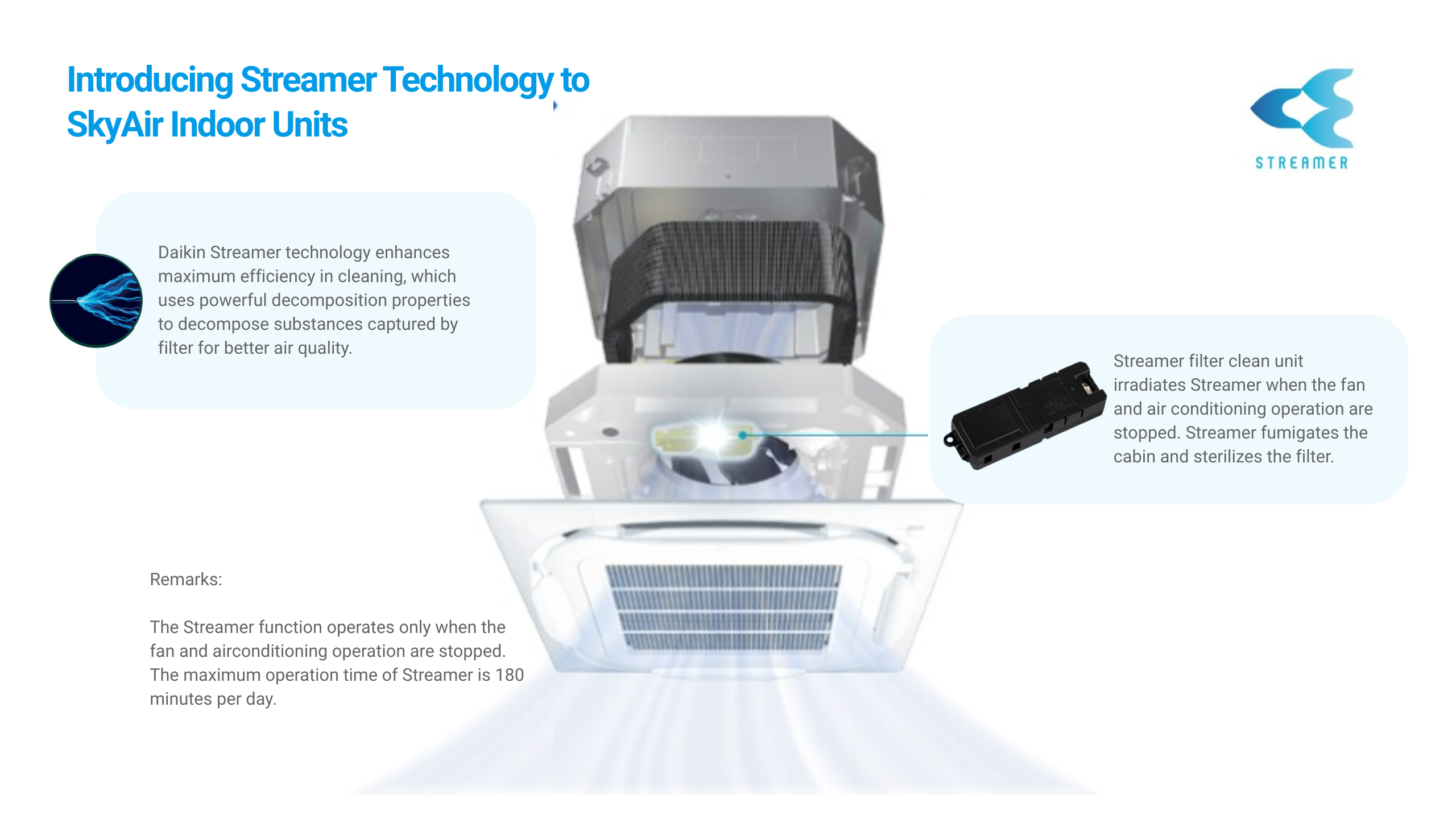

Ceiling Mounted Cassette Type (Round Flow)
Comfortable Airflow Travels Throughout the Room
| 50 | 60 | 71 | 100 | 125 | 100 | 125 | 140 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Name |
Indoor unit | FCQ50LUV1 | FCQ60LUV1 | FCQ71LUV1 | FCQ100KAVEA | FCQ125KAVEA | FCQ100KAVEA | FCQ125KAVEA | FCQ140KAVEA | |||
| Outdoor unit | RZR50LWM | RZR60LWM | RZR71LWMG | RZR100MVMG | RZR125MVMG | RZR100MYM | RZR125MYM | RZR140MYM | ||||
| Power supply | Outdoor unit | 1 Phase, 220–240 V, 50 Hz | 3 Phase, 380–415 V, 50 Hz | |||||||||
| Cooling capacity1,2 |
kW Btu/h |
5.0 (2.3-5.6) 17,100 (7,900-19,100) |
6.0 (2.6-6.3) 20,500 (8,900-21,500) |
7.1 (3.2-8.0) 24,200 (10,900-27,300) |
9.5 (4.5-11.2) 32,400 (15,400-38,200) |
10.8 (5.4-14.0) 36,900 (18,400-47,800) |
10.0 (5.0-11.2) 34,100 (17,100-38,200) |
12.5 (5.7-14.0) 42,700 (19,500-47,800) |
14.0 (6.2-15.4) 47,800 (21,200-52,600) |
|||
| Power consumption | Cooling1 | kW | 1.03 | 1.40 | 1.80 | 2.51 | 3.22 | 2.78 | 4.31 | 5.62 | ||
| COP | W/W | 4.85 | 4.29 | 3.78 | 3.79 | 3.35 | 3.60 | 2.90 | 2.49 | |||
| Indoor unit |
Colour | Decoration panel | Fresh white | |||||||||
| Airflow rate (H/M/L) | m³/min | 21/-/13.5 | 32/26/20 | 33/28/22.5 | 32/26/20 | 33/28/22.5 | ||||||
| Sound level (H/H/H/M/L)3 | dB(A) | [-/-35/-28] | (43/37.5/-32) | (44/39/-34) | [-/43/37.5/32] | [-/44/39/34] | [-/44/40/36] | |||||
| Dimensions (H×W×D) |
Unit | mm | 256×840×840 | 298×840×840 | ||||||||
| Decoration panel | mm | 50×950×950 | ||||||||||
| Machine weight |
Unit | kg | 21 | 24 | ||||||||
| Decoration panel | kg | 5.5 | ||||||||||
| Certified Operation range | Cooling | °CWB | 14 to 25 | |||||||||
| Outdoor unit |
Colour | Ivory white | ||||||||||
| Compressor | Type | Hermetically sealed swing type | Hermetically sealed swing type | |||||||||
| Motor output | kW | 1.12 | 1.35 | 1.76 | 2.03 | 2.03 | 1.92 | 1.92 | ||||
| Refrigerant charge (R-410A) | kg | 1.6 (Charged for 30 m) |
1.9 (Charged for 30 m) |
1.9 (Charged for 30 m) |
1.9 (Charged for 30 m) |
|||||||
| Sound level3 | Cooling | dB(A) | 48 | 49 | 52 | 49 | 52 | 54 | ||||
| Night quiet mode | dB(A) | 44 | 44 | 45 | ||||||||
| Dimensions (H×W×D) | mm | 595×845×300 | 990×940×320 | 990×940×320 | ||||||||
| Machine weight | kg | 43 | 65 | 73 | ||||||||
| Certified Operation range | Cooling | °CDB | 21 to 46 | |||||||||
| Piping connections |
Liquid (Flare) | mm | ϕ 9.5 | |||||||||
| Gas (Flare) | mm | ϕ 15.9 | ||||||||||
| Drain | Indoor unit | mm | VP25 (I.D ϕ 25×O.D ϕ 32) | |||||||||
| Outdoor unit | mm | ϕ 26.0 (Hole) | ||||||||||
| Max. interunit piping length | m | 50 (Equivalent length 70) | ||||||||||
| Max. installation level difference | m | 30 | ||||||||||
| Heat insulation | Both liquid and gas piping | |||||||||||
Note : 1Rated cooling capacities are based on the following conditions:
Suction temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB, 24°CWB.
Equiv. refrigeration piping, 7.5 m (horizontal)
2Capacities are net, including a deduction for cooling for indoor fan motor heat.
3Anechoic chamber conversion value, measured according to JIS parameters and criteria.
During operation these values are somewhat higher owing to ambient conditions.

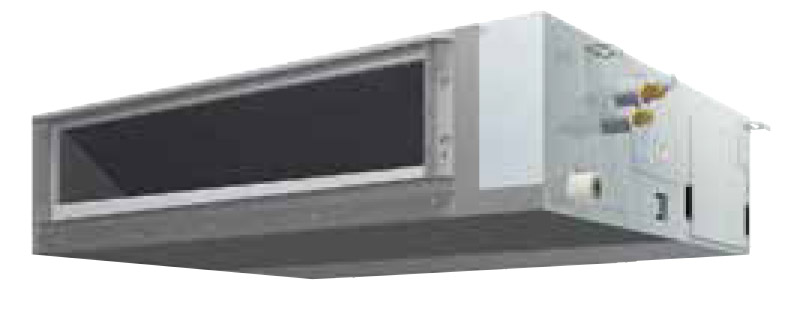

Duct Connection Middle Static Pressure Type
Thinner Design Allows Greater Installation Flexibility
| 50 | 60 | 71 | 100 | 125 | |||||
|---|---|---|---|---|---|---|---|---|---|
|
Model Name |
Indoor unit | FBQ50EVE | FBQ60EVE | FBQ71EVE | FBQ100EVE | FBQ125EVE | |||
| Outdoor unit | RZR50LVM | RZR60LVM | RZR71LVMG | RZR100MVMG | RZR125MVMG | ||||
| Power supply | Indoor unit | 1 Phase, 220–240 V, 50 Hz | |||||||
| Outdoor unit | |||||||||
|
Cooling capacity1,2 Rated (Min. – Max.) |
kW Btu/h |
5.0 [2.3–5.6] 17,100 [7,900–19,100] |
6.0 [2.6–6.3] 20,500 [8,900–21,500] |
7.1 [3.2–8.0] 24,200 [10,900–27,300] |
9.5 [4.5–11.2] 32,400 [15,400–38,200] |
10.8 [5.4–14.0] 36,900 [18,400–47,800] |
|||
| Power consumption | Cooling1 | kW | 1.39 | 1.69 | 2.22 | 2.51 | 3.22 | ||
| COP | W/W | 3.60 | 3.56 | 3.20 | 3.79 | 3.35 | |||
|
Indoor unit |
Fan | Airflow rate (H/M/L) | m³/min | 18/15/12.5 | 23/19.5/16 | 32/27/22.5 | 36/30.5/25 | ||
| External static pressure3 | Pa | Rated 50 (50–150) | |||||||
| Sound pressure level (H/M/L)4 | dB(A) | 35/33/31 | 38/35/33 | 38/35.5/33 | 40/37.5/35 | ||||
| Dimensions (H×W×D) | mm | 245×1,000×800 | 245×1,400×800 | ||||||
| Machine weight (indoor) | kg | 37 | 47 | ||||||
|
Outdoor unit |
Sound pressure level4 |
Cooling | dB(A) | 48 | 49 | 52 | |||
| Night quiet mode | dB(A) | 44 | 45 | ||||||
| Dimensions (H×W×D) | mm | 595×845×300 | 990×940×320 | ||||||
| Machine weight (outdoor) | kg | 43 | 65 | ||||||
|
Piping connection |
Liquid | mm | φ 9.5 (Flare) | ||||||
| Gas | mm | φ 15.9 (Flare) | |||||||
| Drain | Indoor unit | mm | VP25 (I.D φ25×O.D φ32) | ||||||
| Outdoor unit | mm | φ 26 (Hole) | |||||||
| Max interunit piping length | mm | 50 (Equivalent length 70m) | |||||||
| Heat insulation | Both liquid and gas piping | ||||||||
| 100 | 125 | 140 | ||||
|---|---|---|---|---|---|---|
|
Model Name |
Indoor unit | FBQ100EVE | FBQ125EVE | FBQ140EVE | ||
| Outdoor unit | RZR100MYM | RZR125MYM | RZR140MYM | |||
| Power supply | Indoor unit | 1 Phase, 220–240 V, 50 Hz | ||||
| Outdoor unit | 3 Phase, 380–415 V, 50 Hz | |||||
|
Cooling capacity1,2 Rated (Min. – Max.) |
kW Btu/h |
10.0 [5.0–11.2] 34,100 [17,100–38,200] |
12.5 [5.7–14.0] 42,700 [19,500–47,800] |
14.0 [6.2–15.4] 47,800 [21,200–52,600] |
||
| Power consumption | Cooling1 | kW | 2.82 | 4.58 | 5.85 | |
| COP | W/W | 3.55 | 2.73 | 2.39 | ||
|
Indoor unit |
Fan | Airflow rate (H/M/L) | m³/min | 38/35.5/33 | 36/30.5/25 | |
| External static pressure3 | Pa | Rated 50 (50–150) | ||||
| Sound pressure level (H/M/L)4 | dB(A) | 40/37.5/35 | 40/37.5/35 | |||
| Dimensions (H×W×D) | mm | 245×1,400×800 | ||||
| Machine weight (indoor) | kg | 47 | ||||
|
Outdoor unit |
Sound pressure level4 |
Cooling | dB(A) | 49 | 52 | 54 |
| Night quiet mode | dB(A) | 45 | ||||
| Dimensions (H×W×D) | mm | 990×940×320 | ||||
| Machine weight (outdoor) | kg | 73 | ||||
|
Piping connection |
Liquid | mm | φ 9.5 (Flare) | |||
| Gas | mm | φ 15.9 (Flare) | ||||
| Drain | Indoor unit | mm | VP25 (I.D φ25×O.D φ32) | |||
| Outdoor unit | mm | φ 26 (Hole) | ||||
| Max interunit piping length | m | 50 (Equivalent length 70m) | ||||
| Heat insulation | Both liquid and gas piping | |||||
Note: 1Rated cooling capacities are based on the following conditions:
Indoor temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB, 24°CWB.
Equiv. refrigeration piping, 7.5 m (horizontal)
2Capacities are net, including a deduction for cooling for indoor fan motor heat.
3External static pressure is changeable in 11 stages by remote controller.
4Anechoic chamber conversion value, measured according to JIS parameters and criteria.
During operation these values are somewhat higher owing to ambient conditions.
5Air filter is not standard accessory, but please mount it in the dust system of the suction
side.
Select its duct collection efficiency (gravity method) 50% or more.

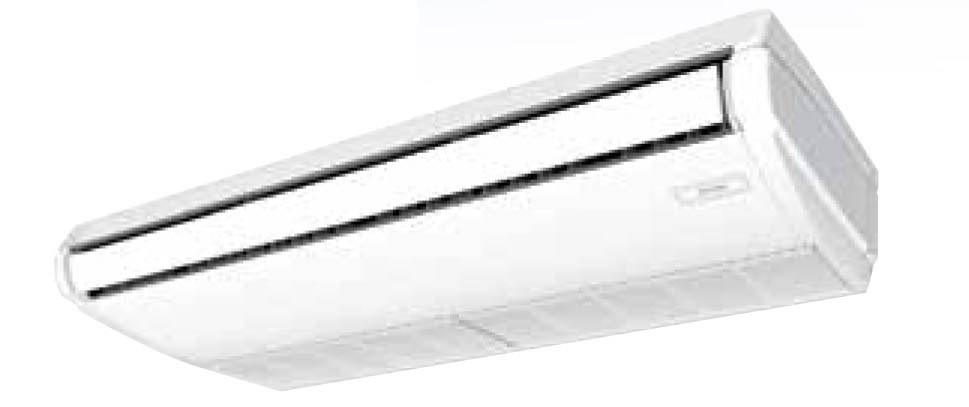

Ceiling Suspended Type
Cassette Air Conditioner with 360 degrees Uniform Airflow sets the Standard
| 50 | 60 | 71 | ||||
|---|---|---|---|---|---|---|
| Model Name |
Indoor unit | FHQ50BW1G | FHQ60BW1G | FHQ71BW1B | ||
| Outdoor unit | RZR50LVM | RZR60LVM | RZR71LVM | |||
| Power supply | Outdoor unit | 1 Phase, 220–240 V, 50 Hz | ||||
|
Cooling capacity1,2 Rated (Min. – Max.) |
5.0 (2.3–5.6) 17,100 (7,900–19,100) |
6.0 (2.6–6.3) 20,500 (8,900–21,500) |
7.1 (3.2–8.0) 24,200 (10,900–27,300) |
|||
| Power consumption | Cooling1 | kW | 1.39 | 1.69 | 2.50 | |
| COP | W/W | 3.60 | 3.56 | 2.84 | ||
| Indoor unit |
Colour | White | ||||
| Airflow rate (H/L) | m³/min | 17/-/14 | ||||
| Sound level (H/L)2 | dB(A) | 39/-/35 | ||||
| Dimensions (H×W×D) | mm | 195×1,160×680 | ||||
| Machine weight | kg | 27 | ||||
| Certified operation range | °CWB | 14 to 25 | ||||
| Outdoor unit |
Colour | Ivory white | ||||
| Compressor | Type | Hermetically sealed swing type | ||||
| Motor output | kW | 1.12 | 1.35 | 1.76 | ||
| Refrigerant charge (R-410A) | kg | 1.6 (Charged for 30 m) | ||||
| Sound level3 | Cooling | dB(A) | 48 | |||
| Night quiet mode | dB(A) | 44 | ||||
| Dimensions (H×W×D) | mm | 595×845×300 | ||||
| Machine weight | kg | 43 | ||||
| Certified operation range | °CDB | 10 to 46 | ||||
|
Piping connections |
Liquid (Flare) | mm | φ 9.5 | |||
| Gas (Flare) | mm | φ 15.9 | ||||
| Drain | Indoor unit | mm | VP20 (I.D φ20×O.D φ26) | |||
| Outdoor unit | mm | φ 26.0 (Hole) | ||||
| Max. interunit piping length | m | 50 (Equivalent length 70) | ||||
| Max. installation level difference | 30 | |||||
| Heat insulation | Both liquid and gas piping | |||||
| 100 | 125 | 100 | 125 | 140 | ||||
|---|---|---|---|---|---|---|---|---|
| Model Name |
Indoor unit | FHQ100BV1B | FHQ125BV1B | FHQ100DAVMA | FHQ125DAVMA | FHQ140DAVMA | ||
| Outdoor unit | RZR100LVM | RZR125LVM | RZR100MYM | RZR125MYM | RZR140MYM | |||
| Power supply | Outdoor unit | 1 Phase, 220–240 V, 50 Hz | 3 Phase, 380–415 V, 50 Hz | |||||
|
Cooling capacity1,2 Rated (Min. – Max.) |
10.0 (5.0–11.2) 34,100 (17,100–38,214) |
12.5 (5.7–14.0) 42,700 (19,500–47,800) |
10.0 (5.0–11.2) 34,100 (17,100–38,200) |
12.5 (5.7–14.0) 42,700 (19,500–47,800) |
14.0 (6.2–15.4) 47,800 (21,200–52,600) |
|||
| Power consumption | Cooling1 | kW | 3.51 | 4.55 | 3.03 | 4.42 | 5.55 | |
| COP | W/W | 2.85 | 2.75 | 3.3 | 2.83 | 2.52 | ||
| Indoor unit |
Colour | white | Light Ivory | |||||
| Airflow rate (H/M/L) | m³/min | 24/-/-/20 | 30/-/25 | 28/24/20 | 31/27/23 | 34/29/24 | ||
| Sound level (H/M/L)2 | dB(A) | 42/-/37 | 44/-/39 | 42/38/34 | 44/41/37 | 46/42/38 | ||
| Dimensions (H×W×D) | mm | 195×1,400×680 | 195×1,590×680 | 235×1,590×690 | ||||
| Machine weight | kg | 32 | 35 | 38 | ||||
| Certified operation range | °CWB | 14 to 25 | ||||||
| Outdoor unit |
Colour | Ivory white | ||||||
| Compressor | Type | Hermetically sealed swing type | Hermetically sealed scroll type | Hermetically sealed swing type | ||||
| Motor output | kW | 2.03 | 2.6 | 1.92 | ||||
| Refrigerant charge (R-410A) | kg | 2.7 (Charged for 30 m) |
3.15 (Charged for 30 m) |
1.9 (Charged for 30 m) |
||||
| Sound level3 | Cooling | dB(A) | 49 | 50 | 49 | 52 | 54 | |
| Night quiet mode | dB(A) | 45 | 46 | |||||
| Dimensions (H×W×D) | mm | 990×940×320 | 1,170×900×320 | 990×940×320 | ||||
| Machine weight | kg | 78 | 97 | 73 | ||||
| Certified operation range | °CDB | 21 to 46 | ||||||
|
Piping connections |
Liquid (Flare) | mm | φ 9.5 | |||||
| Gas (Flare) | mm | φ 15.9 | ||||||
| Drain | Indoor unit | mm | VP20 (I.D φ20×O.D φ26) | |||||
| Outdoor unit | mm | φ 26.0 (Hole) | ||||||
| Max. interunit piping length | m | 50 (Equivalent length 70) | ||||||
| Max. installation level difference | 30 | |||||||
| Heat insulation | Both liquid and gas piping | |||||||
Note : 1Rated cooling capacities are based on the following conditions:
Indoor temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB, 24°CWB.
Equiv. refrigeration piping, 7.5 m (horizontal).
2Capacities are net, including a deduction for cooling for indoor fan motor heat.
3Anechoic chamber conversion value, measured according to JIS parameters and criteria.
During operation these values are somewhat higher owing to ambient conditions.

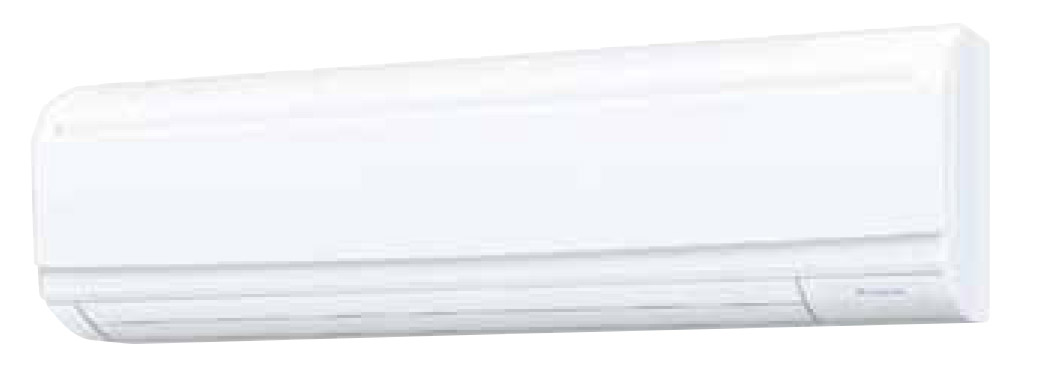

Wall Mounted Type
Compact Design and Easy Installation
| 71 | 100 | 100 | ||||
|---|---|---|---|---|---|---|
| Model Name |
Indoor unit | FAQ71CVEA | FAQ100CVEA | FAQ100CVEA | ||
| Outdoor unit | RZR71LVM | RZR100LVVM | RZR100MYM | |||
| Power supply | Outdoor unit | 1 Phase, 220–240 V, 50 Hz | 3 Phase, 380–415 V, 50 Hz | |||
|
Cooling capacity1,2 Rated (Min. – Max.) |
kW Btu/h |
7.1 (3.2-8.0) 24,200 (10,900-27,300) |
10.0 (5.0-11.2) 34,100 (17,100-38,200) |
|||
| Power consumption | Cooling1 | kW | 2.19 | 3.37 | ||
| COP | W/W | 3.24 | 2.97 | |||
| Indoor unit |
Colour | Fresh white | ||||
| Airflow rate (H/M/L) | m³/min | 18/16/14 | 26/23/19 | |||
| Sound level (H/M/L)3 | dB(A) | 45/42/40 | 49/45/41 | |||
| Dimensions (H×W×D) | mm | 290×1,050×238 | 340×1,200×240 | |||
| Machine weight | kg | 13 | 17 | |||
| Certified Operation range | °CWB | 14 to 25 | ||||
| Outdoor unit |
Colour | Ivory white | ||||
| Compressor | Type | Hermetically sealed swing type | ||||
| Motor output | kW | 1.76 | 2.03 | 1.92 | ||
| Refrigerant charge (R-410A) | kg | 1.6 (Charged for 30 m) | 3.35 (Charged for 30 m) | 1.9 (Charged for 30 m) | ||
| Sound level3 | Cooling | dB(A) | 48 | 49 | ||
| Night quiet mode | dB(A) | 44 | 45 | |||
| Dimensions (H×W×D) | mm | 595×845×300 | 900×940×320 | |||
| Machine weight | kg | 43 | 78 | 73 | ||
| Certified Operation range | °CDB | 21 to 46 | ||||
|
Piping connections |
Liquid (Flare) | mm | φ 9.5 | |||
| Gas (Flare) | mm | φ 15.9 | ||||
| Drain | Indoor unit | mm | VP13 (I.D φ 13 × O.D φ 18) | |||
| Outdoor unit | mm | φ 26.0 (Hole) | ||||
| Max. interunit piping length | m | 50 (Equivalent length 70m) | ||||
| Max. installation level difference | m | 30 | ||||
| Heat insulation | Both liquid and gas piping | |||||
Note :
1Rated cooling capacities are based on the following conditions:
Indoor temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB, 24°CWB.
Equiv. refrigeration piping, 7.5 m (horizontal).
2Capacities are net, including a deduction for cooling for indoor fan motor heat.
3Anechoic chamber conversion value, measured according to JIS parameters and criteria.
During operation these values are somewhat higher owing to ambient conditions.
